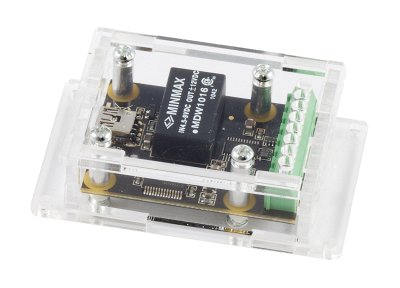

The PhidgetAnalog 4-Output Produces a voltage over -10V to +10V. This voltage will be asserted up to +-20mA. An error will be reported when this current is exceeded, and the voltage the customer is getting is no longer accurate. The voltage is produced with 12 bit resolution (4.8mV).
The board is not isolated and all 4 channels share a common ground.
All the power is supplied by the USB bus.
|Output Voltage Range
|Current limit per channel
|Output Voltage Resolution
||4.8mV (12 bit)
| Output Impedance (channel enabled)
|Output Impedance (channel not enabled)
|USB Voltage Range
|USB Max Current
|USB Quiescent Current
|Capacitive Load Stability
|Terminal Block min/max wire gauge
||Not Isolated: all channels share common ground
||0 - 70°C
Comes Packaged with:
